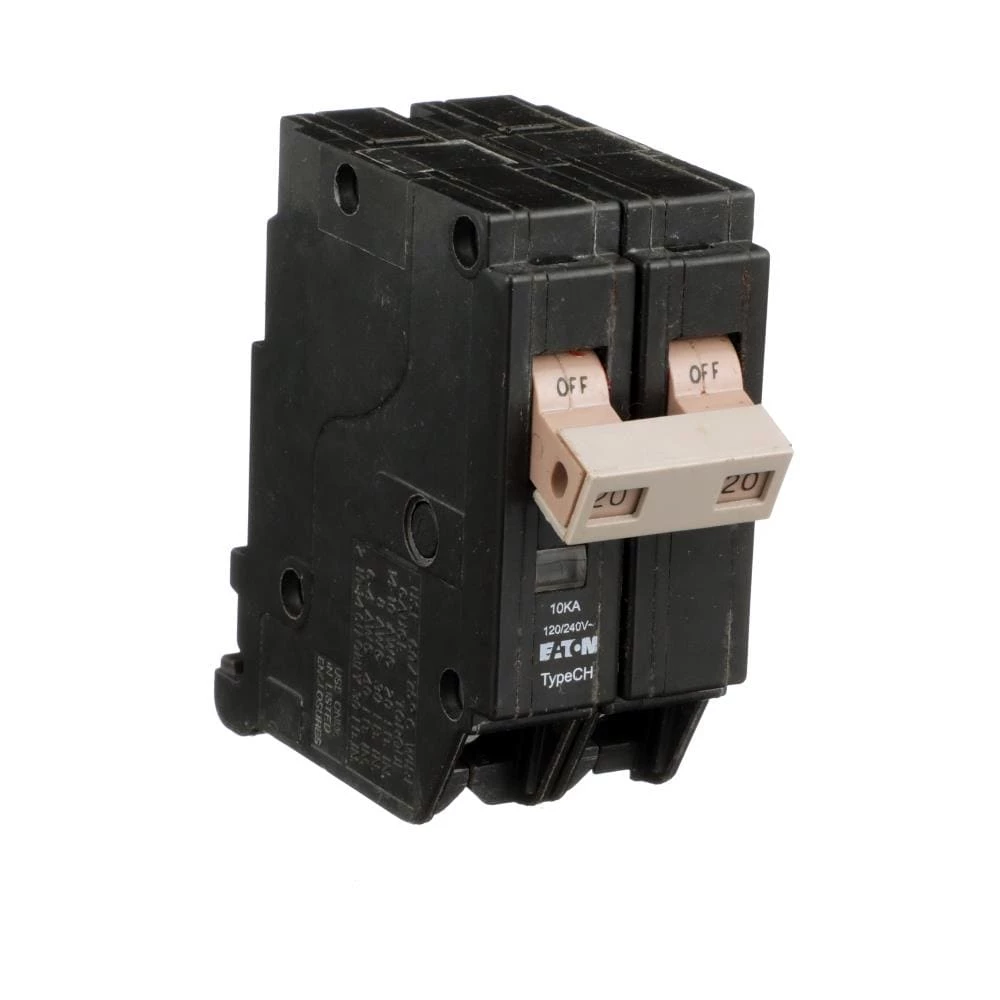

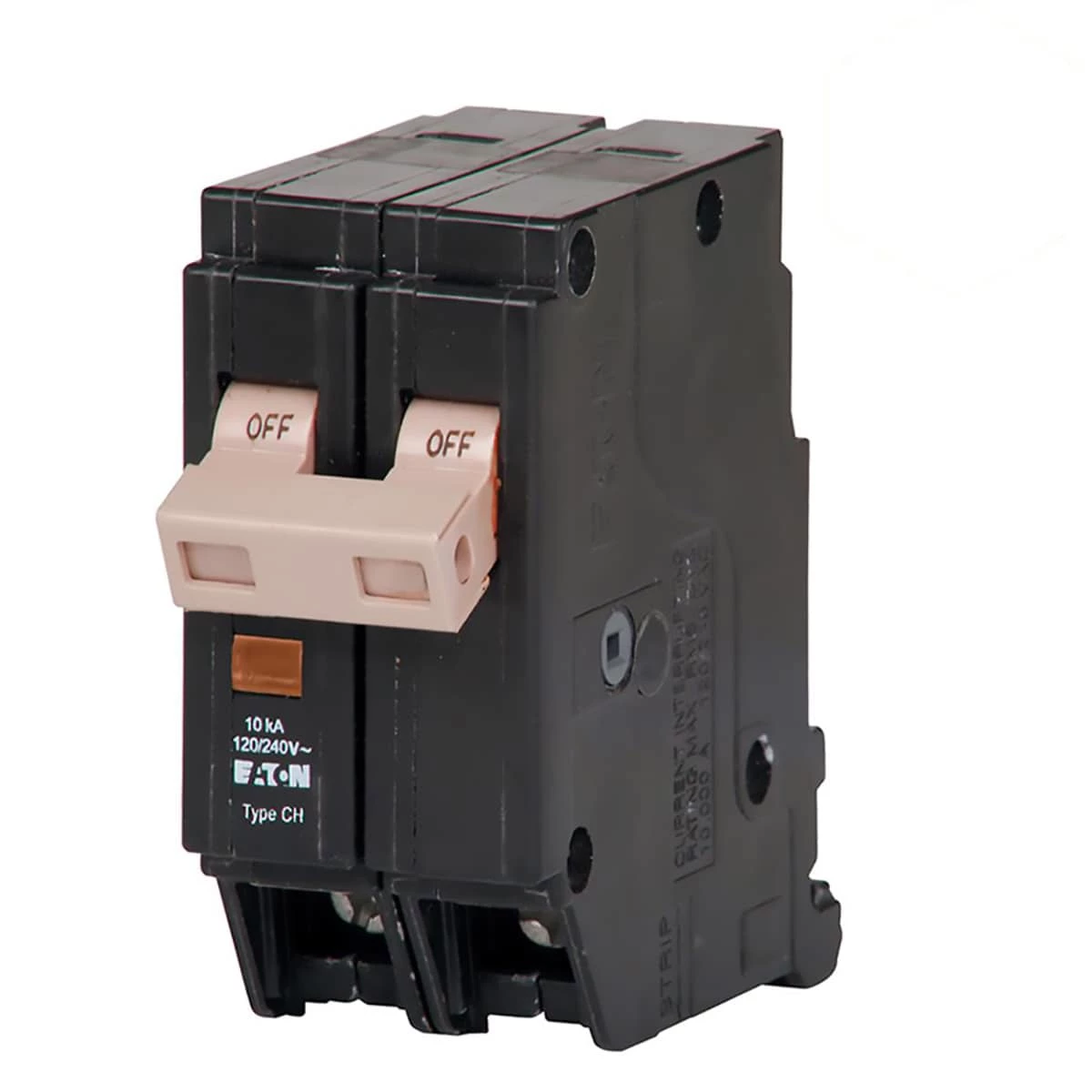

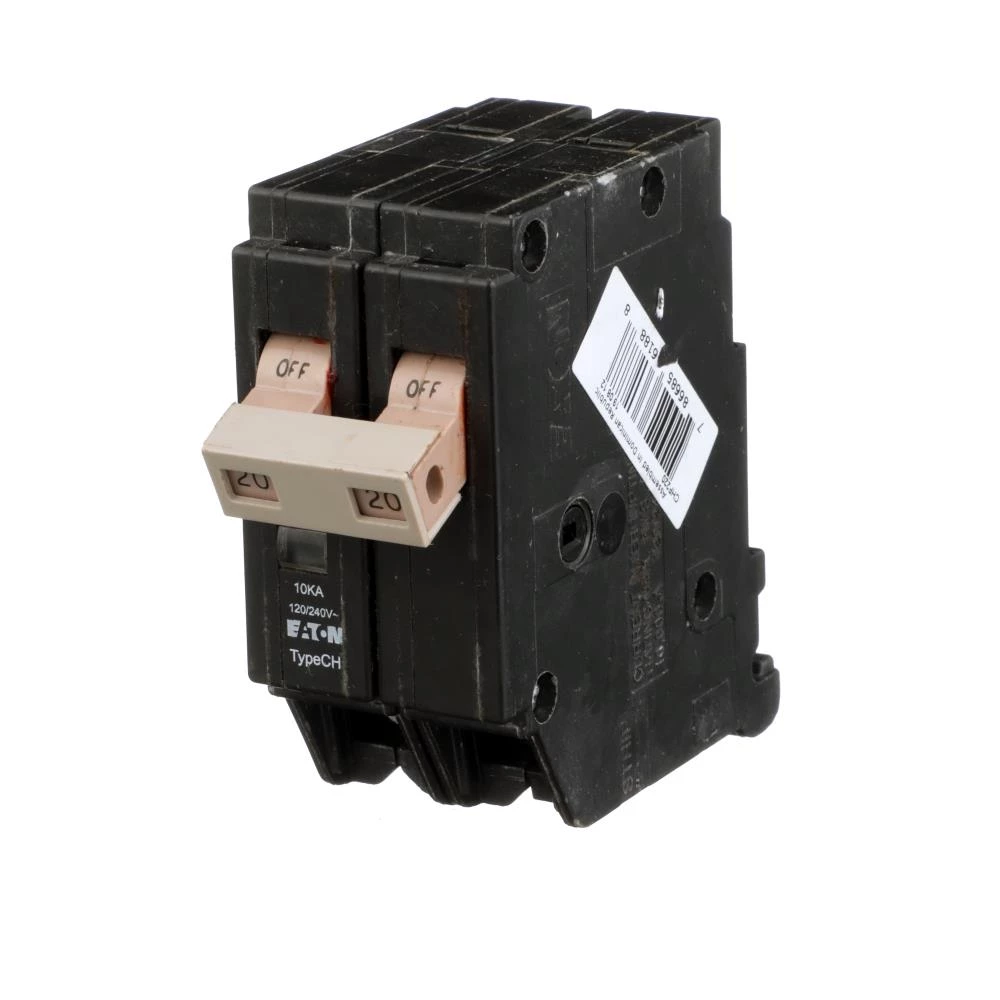

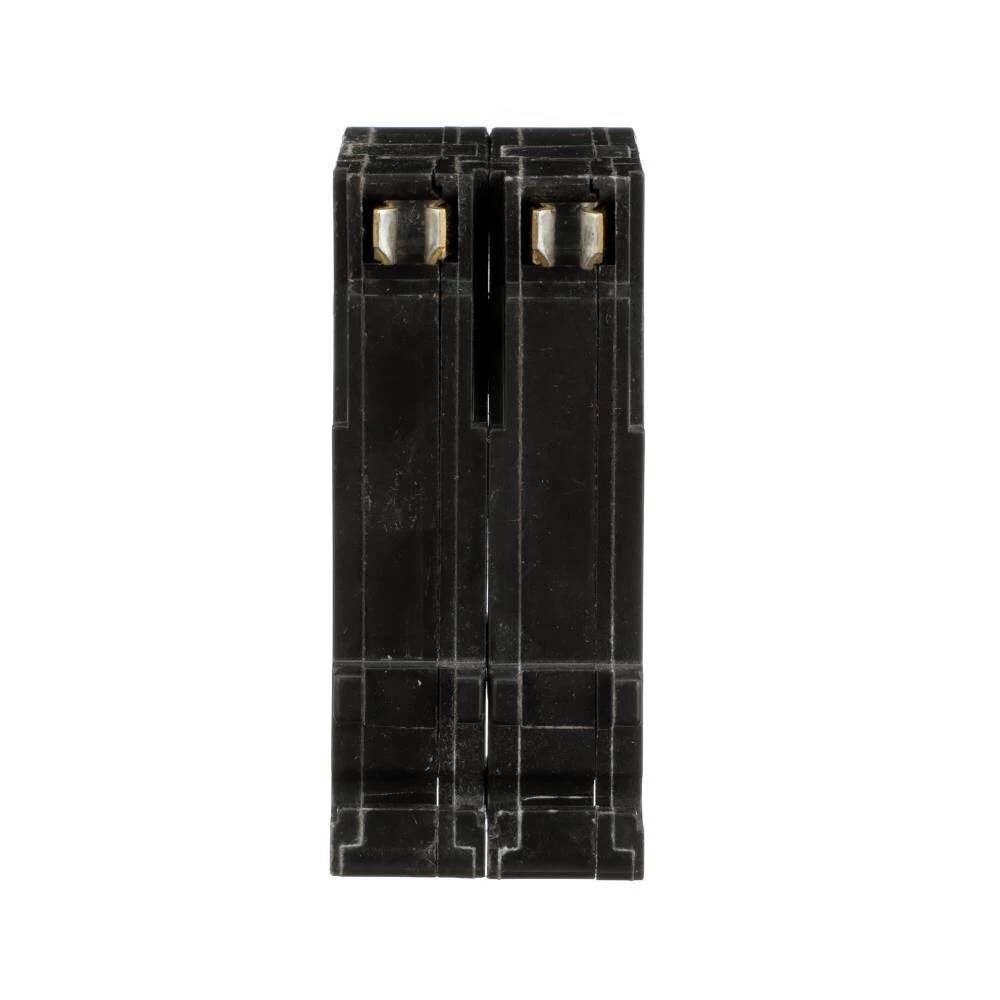

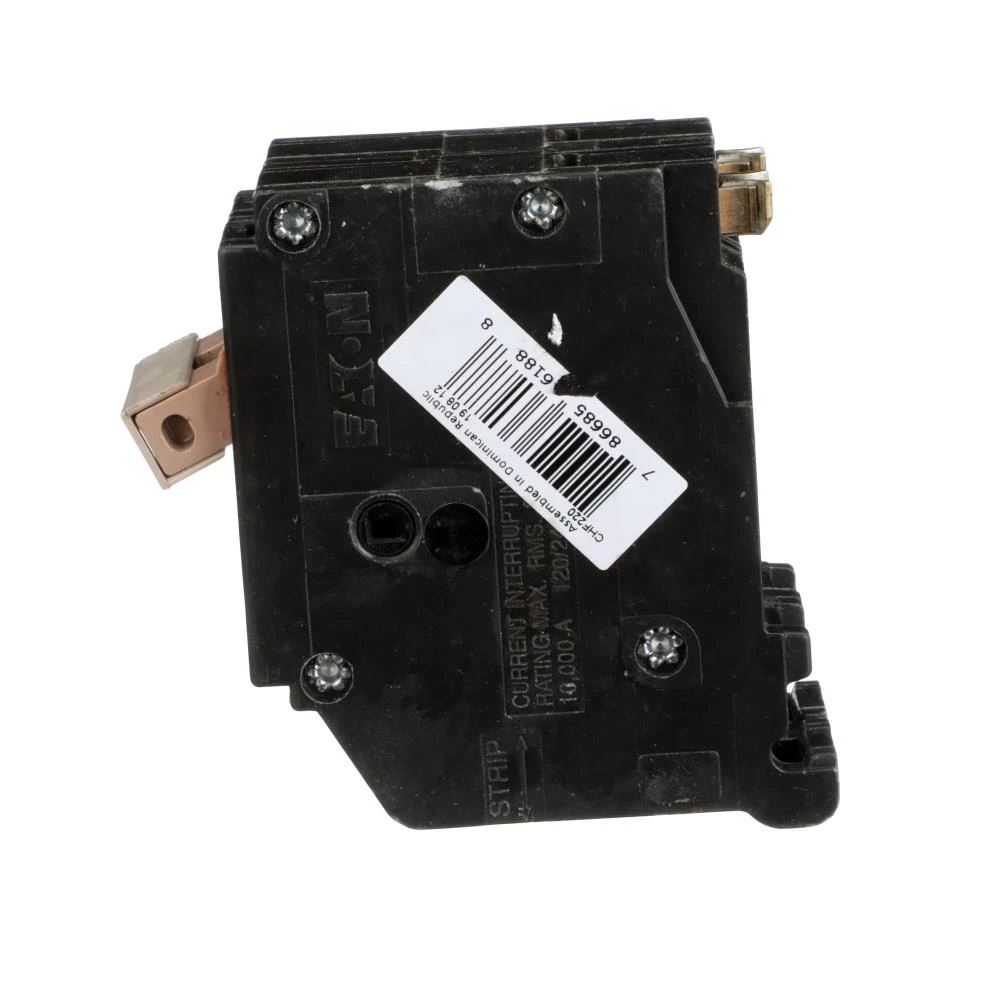

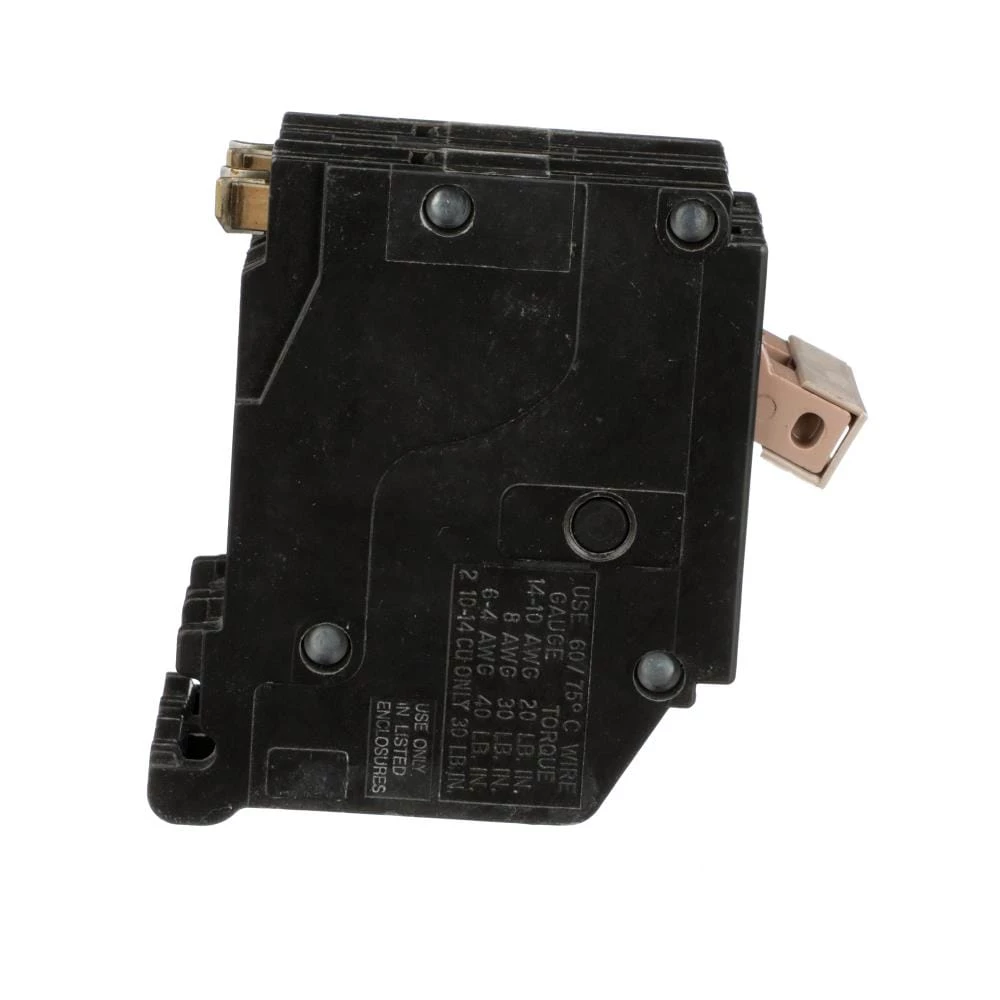

Budget 🔔 Eaton Circuit Breakers Type CH 20-Amp 2-Pole Standard Trip Circuit Breaker 🔔

Eaton’s residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

• For use in Eaton Type CH load centers, spa, pool and meter breaker panels
• Trip to OFF and simple 1-step reset breaker feature eliminates the need to turn the breaker OFF before turning to the ON position
• Eaton has added a trip flag to visibly indicate breaker status
• Flag visually confirms tripped status, making it easy for the homeowner to identify
• Tri-combo screw accepts flat, Robertson or Phillips drivers, making it easier for electricians to install
• Requires (2) 3/4-in spaces
• Interrupt rating is 10 kAIC
• Carries listing for HACR applications
• Eaton offers a full line of circuit breakers to meet all your protection needs including Arc Fault, ground fault, and surge protection
